Model:SPFP-G/0.6- AL/GT-80 Dimensions: 960*1960*80 Capacity of cooper pipe: 1.7L Thickness transparent cover: 3.6mm Absorber: 0.4mm roller coating aluminum plate Thickness of Frame: aluminum 0.35mm(915*1915) Head tubes: Φ22*1 mm aluminum pipe Riser tubes: Grid typeΦ10*1mm insulation materials: 30mm glass wool Insulation thickness: 20mm alloy frame material: Aluminum-magnesium(thickness 1mm)

Integrated lower pressure series

Share to:

Rooftop Commercial Vacuum Tube Solar Water Heater

Quantity:
  • SPA-(B)58/1800-24
  • 84191900
  • China
Reliable, efficient, twin-glass solar tubes
1. Copper heat pipes for rapid heat transfer
2. Easy plug-in installation
3. Maintenance Free
4. Suitable for mains pressure water (up to 8 bar/116psi)
5. Corrosion resistant silver brazed copper header
6. All stainless steel frame (304 2B grade SS)
7. Powder coated (black, brown or silver) aluminum casing
8. Stable solar conversion throughout the day (tubes passively track the sun)
9. The perfect solar collector for domestic solar water heater systems
10. Ideal for commercial solar water heating applications

How It Works

The operation of the AP solar collector is very simple.
1. Solar Absorption: Solar radiation is absorbed by the solar tubes and converted into heat.
2. Solar Heat Transfer: Heat pipes conduct the heat from within the solar tube up to the header pipe.
3. Solar Energy Storage: Water is circulated through the header, via intermittent pump cycling. Each time the water circulates through the header the temperatures is raised by 5-10oC / 9-18oF. Throughout the day, the water in the storage tank is gradually heated.

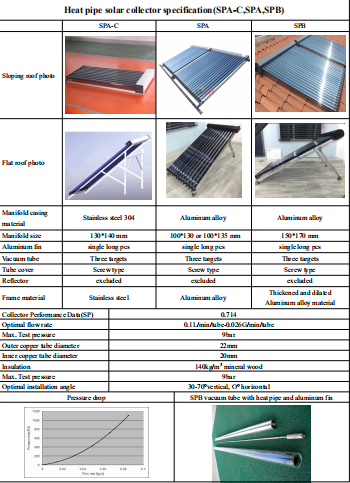

1561172483

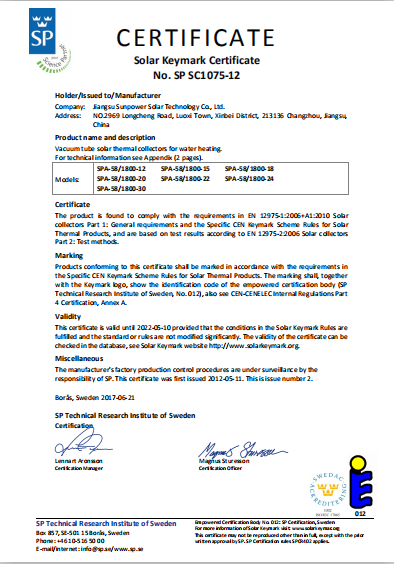

1561172782(1)
1561172782(1)

1561172750(1)
