SPA and SPB Collectors

Views: 107     Author: Site Editor     Publish Time: 2019-03-28      Origin: Site

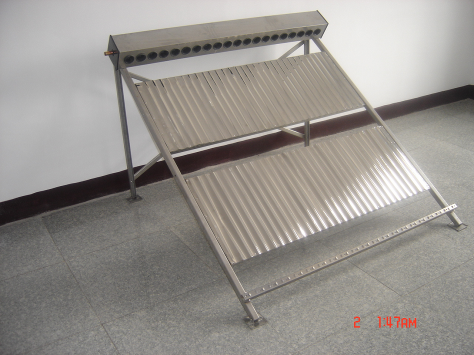

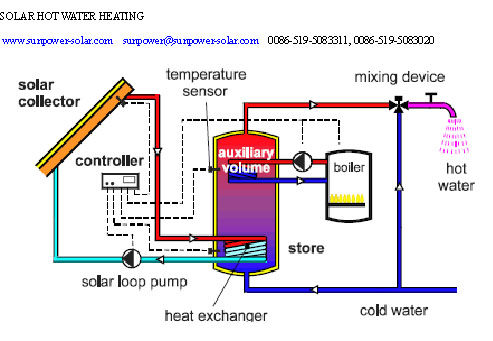

SPA collectors

Components:

One set of SUNPOWER Split SPA collector is consist of 4 elements

1. 1 stainless stell manifold with rockwool insulation

2. 1 set of support for the collector

3. reflectors

4. heatpipe tube

*Open all the corrugated carton gently and do not forget element carton  *





Package:


Quantity

Description

Part

Quantity

Description

Part

2

support for the reflectors(170cm)

A

2

Lateral cross supports (77cm)

E

2

Vertical bars of support of the tank (90 cm)

B

2

Back side  forfex cross supports (157cm)

F

4

Support feet to the ground

C

20

Silicon cover of the vacuum tube

G

1

Horizontal bars to fix the bottom of the vacuum tube (143 cm)

D

20

Screw clamp to fix the bottom of the vacuum tube

H




1

Nutholding bolt connecting





Installation guidelines:

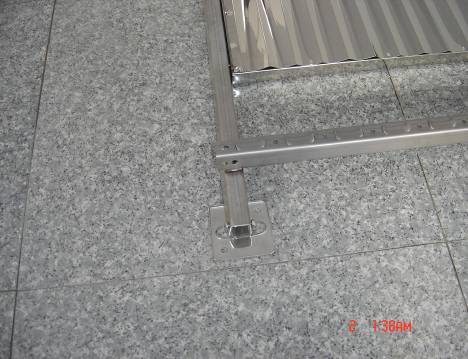

A. Assembly of Part A and C then Part B and C

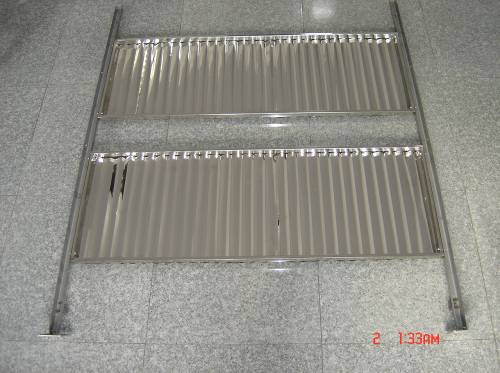

Assemble two PCs of reflectors

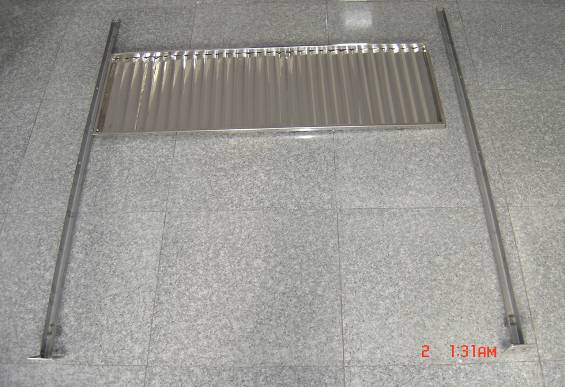

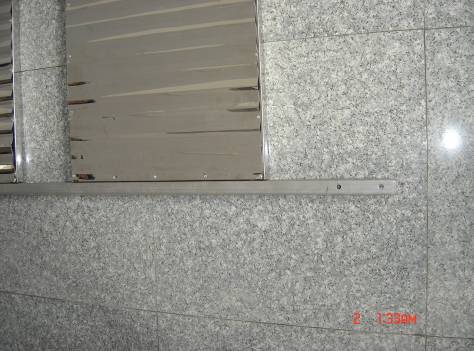

Put  2 bars A on the ground (by putting the front of the bars vis-a-vis on the ground). Then put  the panels of the reflector in the middle  and to assemble the unit.







C: Assemble part E and F

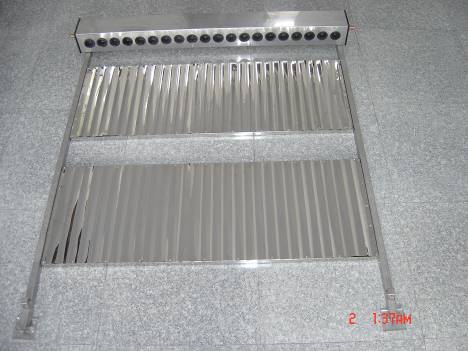

After assembly of the 2 panels reflectors and 2 bars A, to turn over the unit in order to be able to fix the stainless collector manifold on two bars A (see photo).






D: Assemble D and A

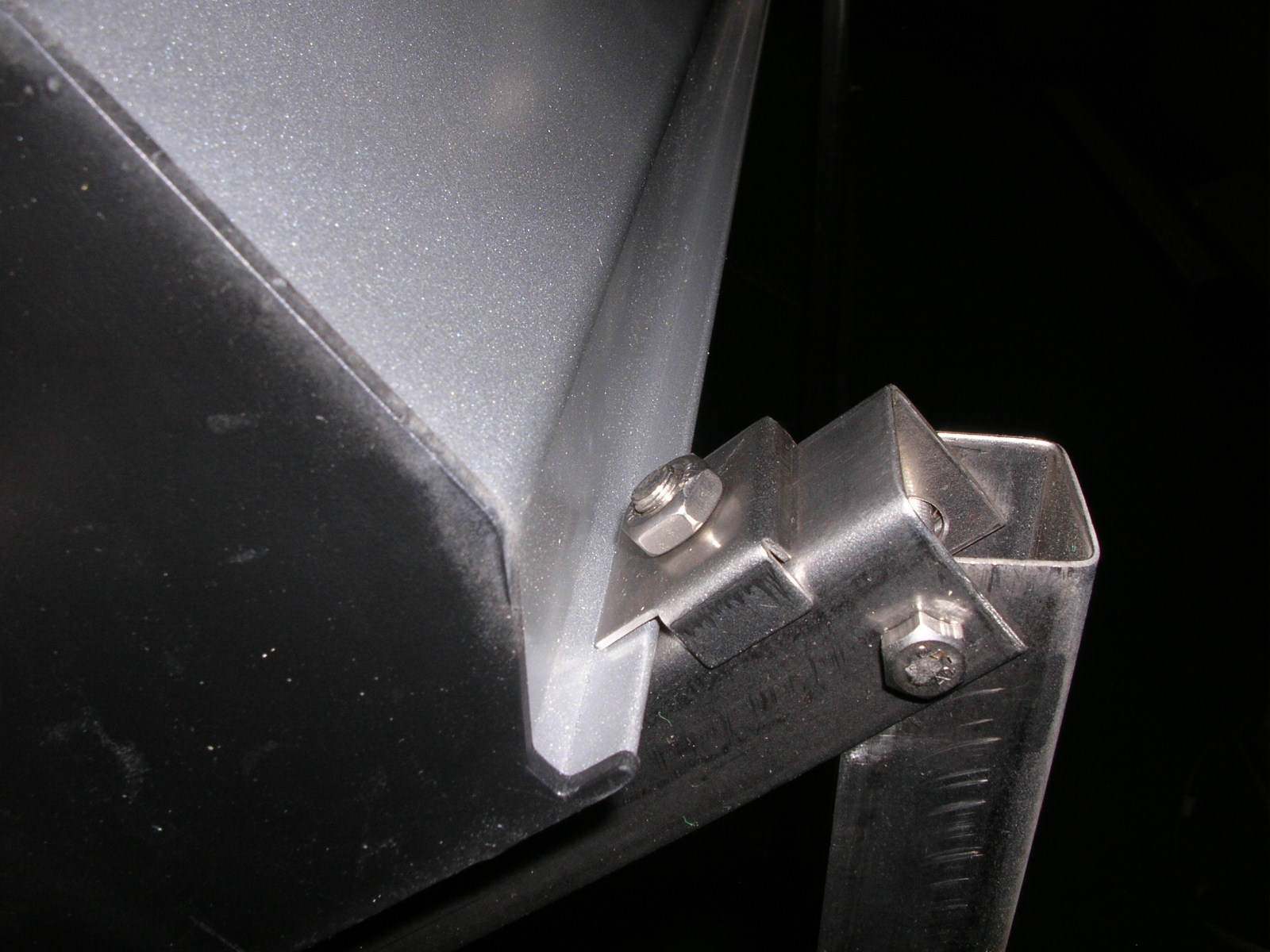

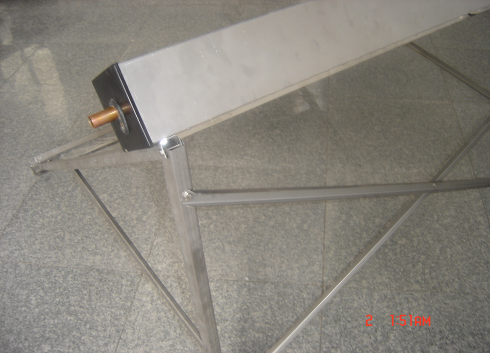

Assemble the support to the stainless steel manifold

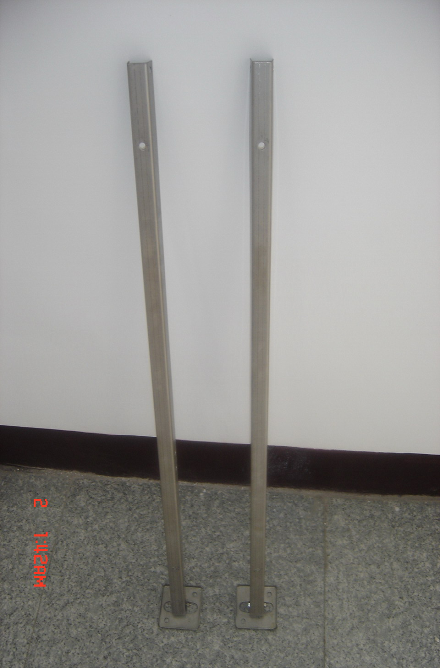

E: Assemble B and F

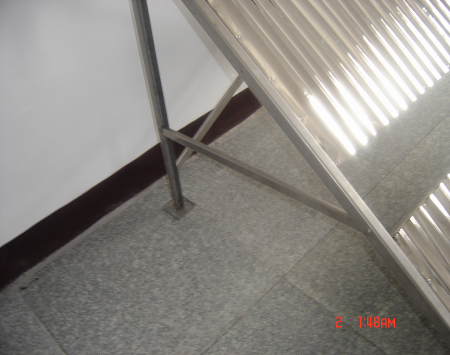

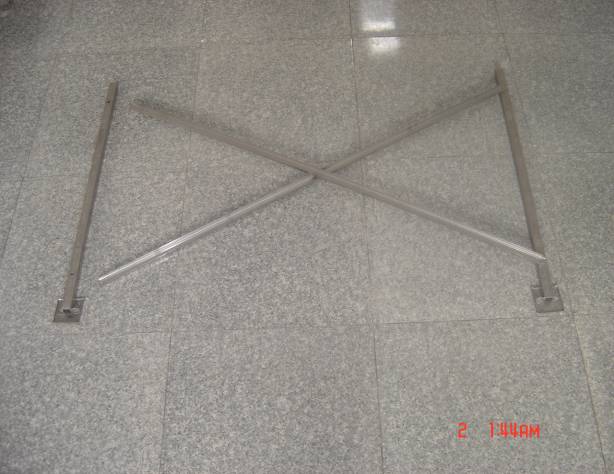

F. Assemble back support and fore support



G. Assemble E






Attention:

To make sure that all the bolts are well in series and that the whole of the structure is completely rigid.

Move the solar collector to the  room ,avoiding any change of the shade.

Install the solar colletor tubes(to install them with gloves on)

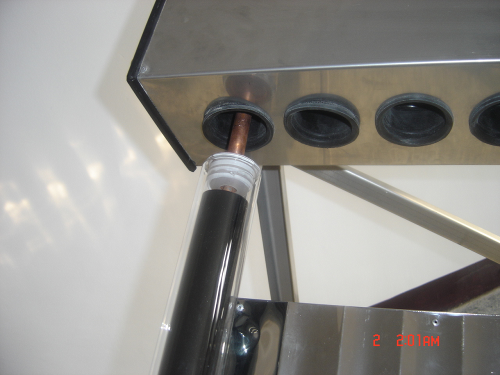

To apply liquid soap to the heatpipe header ,insert the heatpipe header fully to the copper header inside the stailess steel manifold.

Insert the heatpipe into the heatpipe header cover carefully  about 10 cm.










To thread the screw clamp H in the notch on the part D.

Put the silicone cover G base to the bottom of the vacuum tube.

To tighten the screw clamp H around the silicone G at the bottom of vacuum tube.

Do it in the same way to the other tubes for the collector.

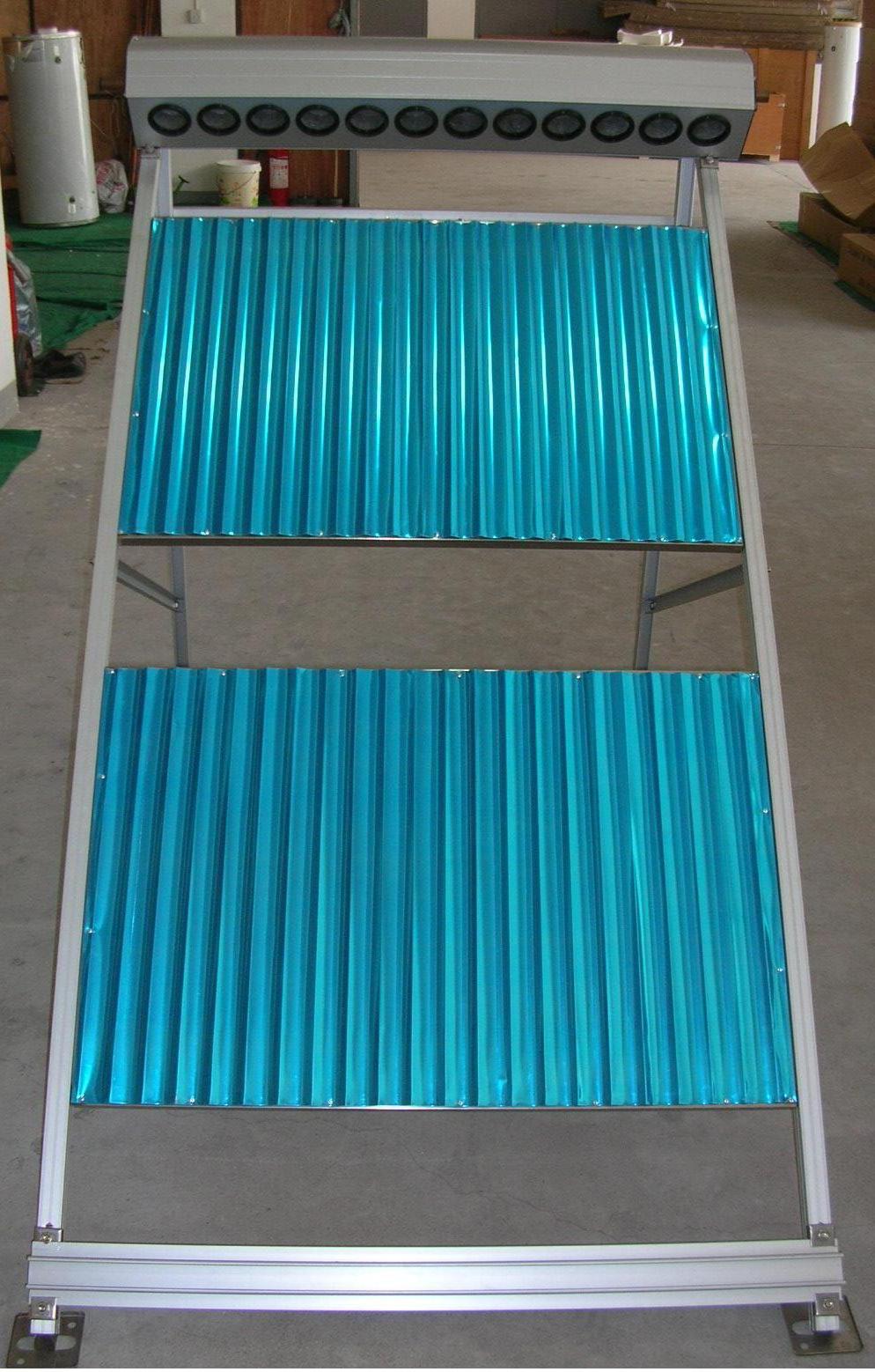

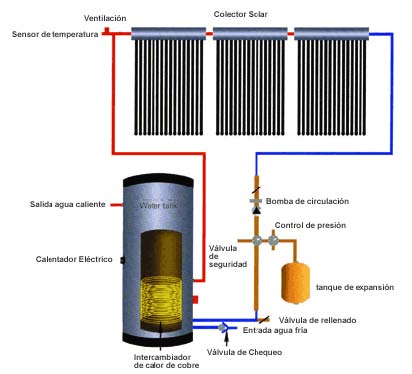

SPB  collectors

Components:

One set of SUNPOWER Split SPB collector is consist of 4 elements

1. 1 aluminium manifold with rockwool insulation

2. 1 set of support for the collector

3. reflectors

4. heatpipe tube

*Open all the corrugated carton gently and do not forget element carton  *




Package:


Quantity

Description

Part

Quantity

Description

Part

2

support for the reflectors(1991mm)

A

2

Back side cross supports (738mm)

F

2

Vertical bars of support of the tank (1330mm)

B

1

Horizontal bars(946mm)

G

4

Support feet to the ground

C

8

bolt connectings

H

1

Horizontal bars to fix the bottom of the vacuum tube (967mm)

D

12

Vacuum tube bottom cover

I

2

Lateral cross supports (840mm)

E

2

Rubber protector

J


The above date is special for SPB-47/1500-12


Installation guidelines:

Assemble two PCs of reflectors

Put  2 bars A on the ground (by putting the front of the bars vis-a-vis on the ground). Then put  the panels of the reflector in the middle  and to assemble the unit.







B.  Assemble the feet and stands to the manifold:

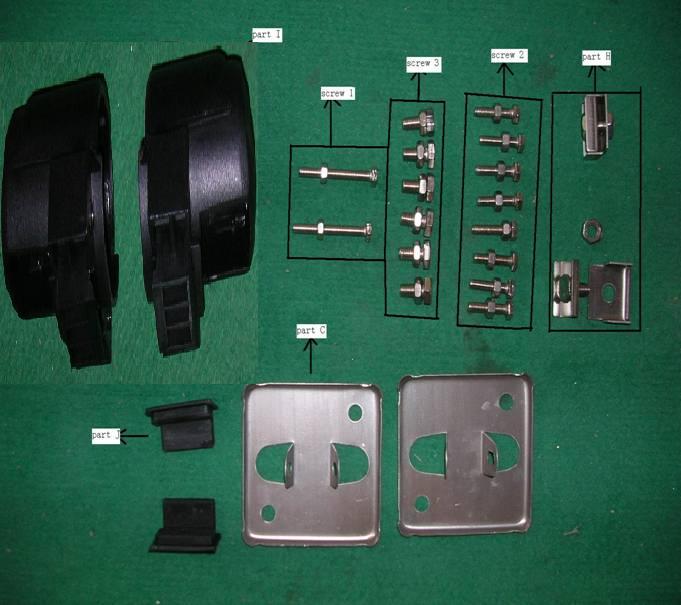

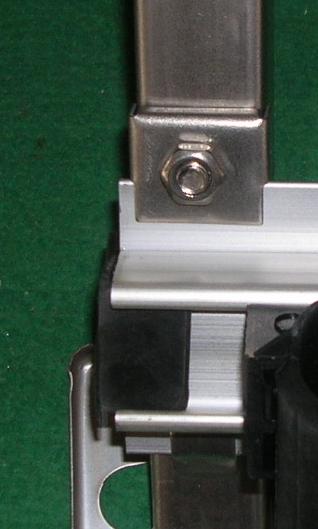

Assembly Part C(use screw 1) then Part D (use screw 3) and manifold with Part H (use screw 3)







C. Assemble part B and E, F,G

After assembly of the 2 panels reflectors and 2 bars A, to turn over the unit in order to be able to fix the stainless collector manifold on two bars A (see photo)





Assemble the support to the aluminium manifold.


D. Assemble B, F and G









ATTENTION:



To make sure that all the bolts are well in series and that the whole of the structure is completely rigid

Move the solar collector to the  room ,avoiding any change of the shade

Install the solar collector tubes( to install them with gloves on)

To apply liquid soap to the heatpipe header ,insert the heatpipe header fully to the copper header inside the aluminium manifold.

Insert the heatpipe into the heatpipe header cover carefully about 10 cm.






Assemble part I

Put the part I to the bottom of the vacuum tube

Do it in the same way to the other tubes for the collector


Assemble part J
