Project Type pressurized heat pipe Solar Collector

Specification:
Manifold Casing Material 2.0mm thickness /Aluminum
Frame Material 1.2mm thickness stainless steel or 2.0mm Aluminum alloy
Header Pipe Material 1.2mm thickness /Copper
Insulation Polyurethane /Rockwool
Rubber Seals and Rings UV stabilized high temperature silicone rubber
Optimal installation angle 30-70° Vertical, 0° Horizontal
Operating Pressure 6bar-12bar
Pressure Drop 7bar 3.3L/min for 20 tube manifold
Optimal flow rate 0.1L/min/tube-0.026G/min/tube

Solar Collector Operation
Step 1: The absorber coating on the inner glass tube absorbs sunlight and converts it into heat.
Step 2: Steam forms inside heat pipe which transfers heat rapidly up to the manifold.
Step 3: A pump circulates water or heat transfer fluid through the header pipe, carrying heat back to the
storage tank. Gradually throughout the day the tank is heated up.<o:p>

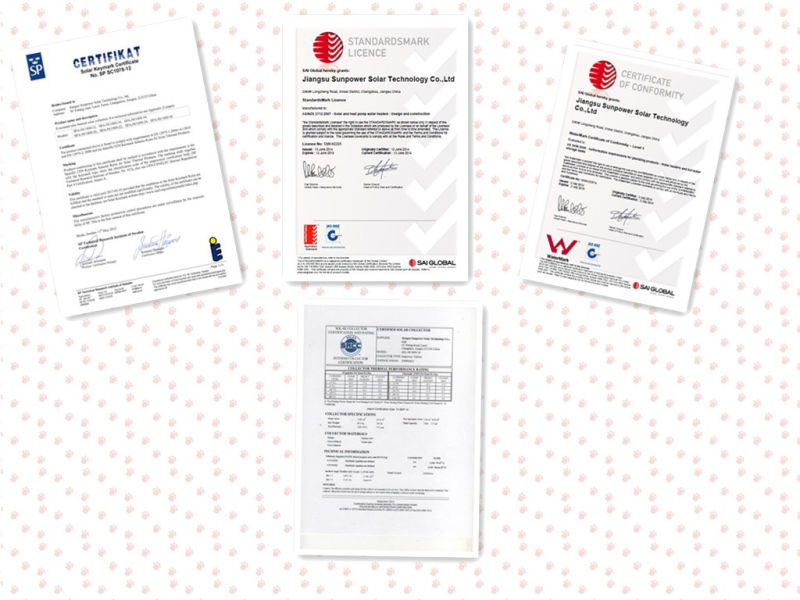

Certificate
