| Quantity: | |
|---|---|
SPA-58/1800-30
Separate Type
Copper
Collector+Tank+Working Station
0.714
EN12975, EN12976, AS/NZS 2712
84191910
>200L
Pressurized
Glass Vacuum Tube
CE, ISO9001, CCC, En12975
sunpower
Changzhou, Jiangsu
SPA----stainless steel SUS 304 2B for the manifold
SPB----Aluminum alloy for the manifold
1. Borosilicate glass according to ISO3585:1991; transmittance of borosilicate glass:0.92.Absorbance of solar selective absorptive coating:0.94; Hemispherical emittance:0.08; Getter according to GB/T9505-1998.
2. Start-up temperature: no more than 25.
3. Start-up time: no longer than 2 minutes under normal sunshine.
4. Low temperature resistance: no breaks at -30.
5. Heat impact resistance: no damage after over 3 time's alternative impact of cold water below 25 and hot water over 90.
6. Pressure resistance: can withstand 0.6Mpa.
7. Hail resistance: no damage by the impact of 25mm diameter hail.

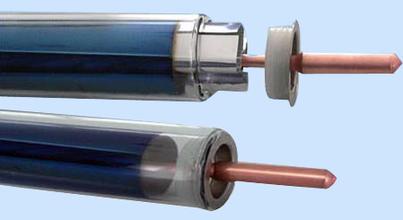

Heat pipe

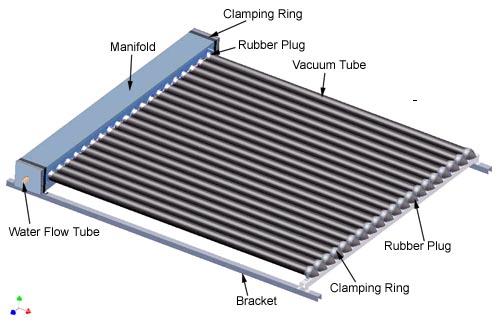

Collector appreance
SPA----stainless steel SUS 304 2B for the manifold
SPB----Aluminum alloy for the manifold
1. Borosilicate glass according to ISO3585:1991; transmittance of borosilicate glass:0.92.Absorbance of solar selective absorptive coating:0.94; Hemispherical emittance:0.08; Getter according to GB/T9505-1998.
2. Start-up temperature: no more than 25.
3. Start-up time: no longer than 2 minutes under normal sunshine.
4. Low temperature resistance: no breaks at -30.
5. Heat impact resistance: no damage after over 3 time's alternative impact of cold water below 25 and hot water over 90.
6. Pressure resistance: can withstand 0.6Mpa.
7. Hail resistance: no damage by the impact of 25mm diameter hail.
Heat pipe
Collector appreance
