Model:SPFP-G/0.6- AL/GT-80 Dimensions: 960*1960*80 Capacity of cooper pipe: 1.7L Thickness transparent cover: 3.6mm Absorber: 0.4mm roller coating aluminum plate Thickness of Frame: aluminum 0.35mm(915*1915) Head tubes: Φ22*1 mm aluminum pipe Riser tubes: Grid typeΦ10*1mm insulation materials: 30mm glass wool Insulation thickness: 20mm alloy frame material: Aluminum-magnesium(thickness 1mm)

Integrated lower pressure series

Share to:

Indirect Commercial Split Solar Water Heater

Quantity:
  • Heat pipe solar collector SPA(B)

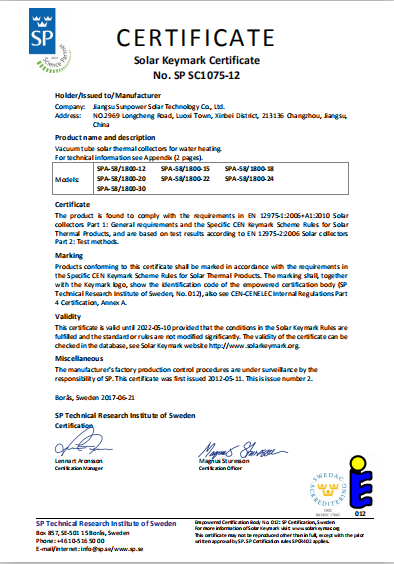

  • C E&Solar Key Ma Rk Certificate
  • bedelite
  • Changzhou City of China
SPA----stainless steel SUS 304 2B for the manifold

SPB----Aluminum alloy for the manifold

1. Borosilicate glass according to ISO3585: 1991; Transmittance of borosilicate glass: 0.92. Absorbance of solar selective absorptive coating: 0.94; Hemispherical emittance: 0.08; Getter according to GB/T9505-1998.
2. Start-up temperature: No more than 25.
3. Start-up time: No longer than 2 minutes under normal sunshine.
4. Low temperature resistance: No breaks at -30.
5. Heat impact resistance: No damage after over 3 time's alternative impact of cold water below 25 and hot water over 90.
6. Pressure resistance: Can withstand 0.6Mpa.
7. Hail resistance: No damage by the impact of 25mm diameter hail.
1561172483

1561172750(1)
1561172782(1)
