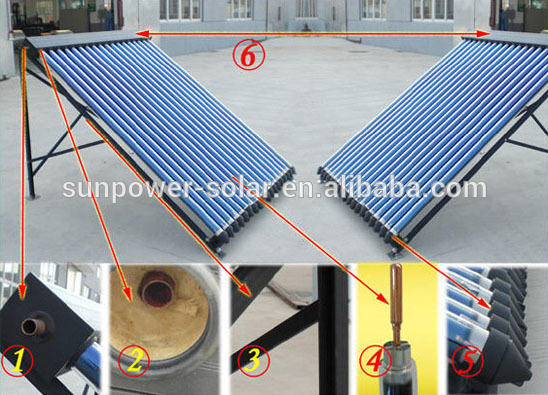

Specification: ManifoldCasing Material 2.0mm thickness /Aluminum Frame Material 1.2mm thickness stainless steel or 2.0mm Aluminum alloy Header Pipe Material 1.2mm thickness /Copper Insulation Polyurethane /Rockwool Rubber Seals and Rings UV stabilized high temperature silicone rubber Optimal installation angle 30-70Vertical, 0Horizontal Operating Pressure 6bar-12bar Pressure Drop 7bar 3.3L/min for 20 tube manifold Optimal flow rate 0.1L/min/tube-0.026G/min/tube
Feature 1. High pressure storage tank(Testing pressure=9 bar), using SUS304-2B, 1.2mm-2.0mm. 2. Less heat loss as compared to the non pressure model, Heat Preservation: 72-90hours 3. Highly efficient heat pipe technology, Anti-freezing in cold winter, whole system can work well in -35 4. No water introduced into vacuum tube, no water out if tube broken 5. Max. Pressure bearing: 1.2MPa 6. Can be used all year round in the cold climate. Hail resistance: 25mm / 35mm
Solar Collector Operation Step 1: The absorber coating on the inner glass tube absorbs sunlight and converts it into heat. Step 2: Steam forms inside heat pipe which transfers heat rapidly up to the manifold. Step 3: A pump circulates water or heat transfer fluid through the header pipe, carrying heat back to the storage tank. Gradually throughout the day the tank is heated up.
Specification: ManifoldCasing Material 2.0mm thickness /Aluminum Frame Material 1.2mm thickness stainless steel or 2.0mm Aluminum alloy Header Pipe Material 1.2mm thickness /Copper Insulation Polyurethane /Rockwool Rubber Seals and Rings UV stabilized high temperature silicone rubber Optimal installation angle 30-70Vertical, 0Horizontal Operating Pressure 6bar-12bar Pressure Drop 7bar 3.3L/min for 20 tube manifold Optimal flow rate 0.1L/min/tube-0.026G/min/tube
Feature 1. High pressure storage tank(Testing pressure=9 bar), using SUS304-2B, 1.2mm-2.0mm. 2. Less heat loss as compared to the non pressure model, Heat Preservation: 72-90hours 3. Highly efficient heat pipe technology, Anti-freezing in cold winter, whole system can work well in -35 4. No water introduced into vacuum tube, no water out if tube broken 5. Max. Pressure bearing: 1.2MPa 6. Can be used all year round in the cold climate. Hail resistance: 25mm / 35mm
Solar Collector Operation Step 1: The absorber coating on the inner glass tube absorbs sunlight and converts it into heat. Step 2: Steam forms inside heat pipe which transfers heat rapidly up to the manifold. Step 3: A pump circulates water or heat transfer fluid through the header pipe, carrying heat back to the storage tank. Gradually throughout the day the tank is heated up.
