Flat Panel Solar Water Heating Collector System

Model SPFP -Cu/Cu-1
Dimensions: 2000*1000*80
Quantity:
  • SPFP- Cu/Cu-1

  • Solar Thermal

  • sunpower

  • Changzhou, Jiangsu

  • Pressurized

  • Copper

  • EN12975, AS/NZS 2712

  • 84191910

Flat plate solar collector solar system uses high efficient absorber with blue titanium coating   which imported from Germany. The special whole plate with ultrasonic welding technology makes the collector more beautiful, efficient and durable.


Product Specification

Model  SPFP -Cu/Cu-1
Absorber                            0.2mm copper sheet welded to grid by laser
Frame size                         2000 x 1000 x 80MM
Package size                     2150*1025*115mm
Absorber area                   1915*915*0.2mm
net weight                         42±1KG
Absorption rate                  0.95-0.97
Transparent cover             3.2mm sheet of low-iron tempered glass
Casing                               1.5 mm aluminum-magnesium alloy
Insulation                          45mm back and 25mm lateral, glass wool
Main header                      2 copper units (22mm*0.8mm)
Secondary header             8 copper units (10mm*0.6mm)
Back finishing and sealing 4 copper tubes (male)
Working pressure              10bar
Maximum working pressure  15bar
Bottom cover                     0.5mm galvanized steel

Order /Container load quantity  20GP/130pcs      40HQ/300pcs

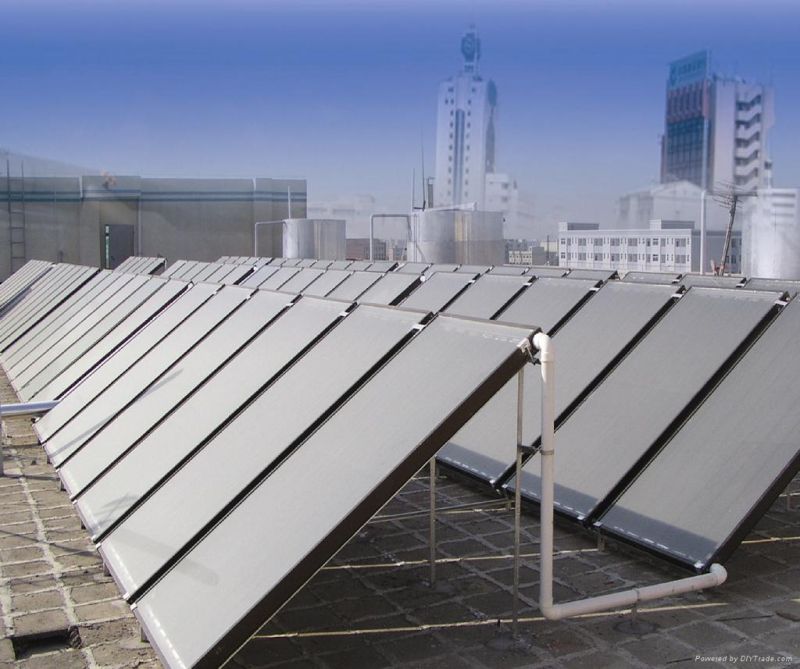

Solar Water Heating System
