Introduction:
With the development of China's economy, the competition in the domestic construction industry is becoming more and more fierce, and the development of the construction industry has brought a lot of energy consumption and pollution. Therefore, the development trend of the construction industry will gradually shift towards sustainable development and circular energy conservation. . For the construction industry, on the one hand, water resources utilization and power utilization, on the other hand, the loss of land resources utilization is excessive. In order to further control energy consumption, the use of solar energy has solved this problem very scientifically. The solar hot water system can effectively convert solar energy into heat energy and supply the demand for hot water. It can greatly reduce the use of electric energy and does not cause any pollution during use. Solar energy is a renewable energy source, so solar energy is an ideal new energy source.

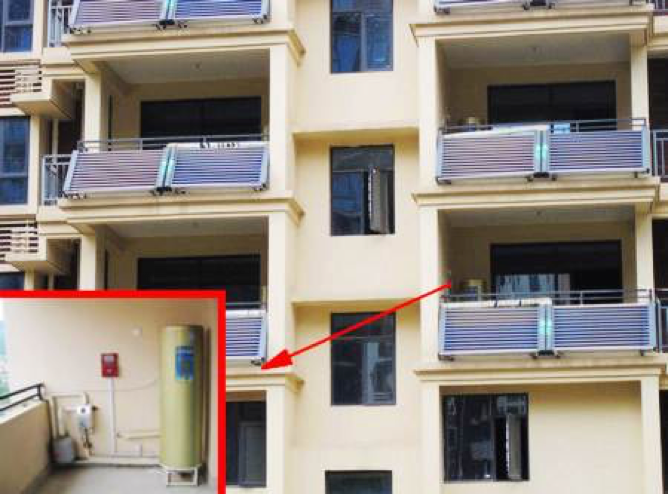

Figure 1 Balcony with embedded solar energy
The balcony embedded solar water heater is installed through the innovative design of the balcony cantilever board, so that the water tank of the solar water heater is concealed into the groove of the balcony cantilever board. The vacuum glass heat pipe of the solar water heater is in the groove of the balcony glass window. In order to fully absorb the sunlight, the angle of the vacuum heat absorbing tube can be adjusted; for the overall beauty and transparency of the balcony, the utility model removes the reflector behind the ordinary solar glass tube, and adds an adjustable angle of mercury glass reflection at the bottom of the balcony concave window board.
Working principle:
The vacuum glass heat pipe of the solar water heater is in the groove of the balcony glass window, so that the water storage tank of the solar water heater is concealed and embedded in the groove of the balcony cantilevered plate. The embedded solar water heater is installed through the innovative design of the balcony cantilever plate, vacuum The angle of the heat absorbing tube can be adjusted, and an adjustable angle mercury glass reflector is added at the bottom of the balcony concave window. The utility model removes the reflector behind the ordinary solar glass tube; for the overall beauty and transparency of the balcony. In order to fully absorb sunlight, it is usually achieved by integrating the water tank with the fireplace or by connecting the water tank to the heat collector.
The circulating medium (safety antifreeze) is added to the solar collector system. When the daily solar radiation reaches a certain intensity, the temperature T1 of the circulating port starts to rise at the temperature of the collector, and when the temperature of the collector reaches the set temperature of the controller ( When T1≥60°C), and the temperature difference between the collector outlet and the collector inlet (T1-T2≥8°C), the collector circulating water pump starts to start, and the high temperature medium in the collector is evenly transported to the downstairs storage. In the heat exchange jacket of the hot water tank, heat is transferred to the low temperature water in the inner tank of each hot water storage tank through the high temperature circulating medium; when one of the above two conditions cannot be satisfied, the circulation stops.
Production:

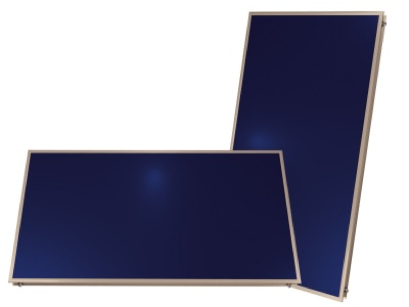

Figure 2 Flat Plate Solar
If you choose a good collector, it will be helpful for your balcony embedded solar energy, you can look at Sunpower's high-efficiency Flat Plate Solar Collector, using high-performance laser welding equipment and assembly line production, greatly improving solar energy Production and assembly efficiency of the collector core. Compared with the traditional processing methods, the welding precision, product stability and overall appearance have more excellent characteristics.
